Mask¶

Masks are 2D boolean numpy arrays which are primarily used to represent selections for example some region of an image. Masks are typically given to functions like arlunio.image.fill() to indicate which regions of an image a particular operation should affect. This module provides a Mask class that builds on a standard numpy array as well as a number of functions and definitions for manipulating it.

Creating Masks¶

arlunio.mask.all_(*args: Union[bool, numpy.ndarray, arlunio.mask.Mask]) → arlunio.mask.Mask [source]¶

Given a number of conditions, return True only if all of the given conditions are true.

This function is implemented as a thin wrapper around numpy’s numpy.logical_and function so that it can take an arbitrary number of inputs. This also means that this function will accept arrays of differing sizes, assuming that they can be broadcasted to a common shape.

Parameters: args – A number of boolean conditions, a conditon can either be a single boolean value, or a numpy array of boolean values.

Examples

>>> import arlunio.mask as mask
>>> mask.all_(True, True, True)
Mask(True)
>>> mask.all_(True, False, True, True)
Mask(False)

If the arguments are boolean numpy arrays, then the any condition is applied element-wise

>>> import numpy as np
>>> x1 = np.array([True, False, True])
>>> x2 = np.array([False, False, True])
>>> x3 = np.array([False, True, True])
>>> mask.all_(x1, x2, x3)
Mask([False, False,  True])

Arugments can be any mixture of booleans, masks and numpy arrays.

>>> mask.all_(
...     True,
...     mask.Mask([True, False]),
...     np.array([[False, True], [True, False]])
... )
Mask([[False, False],
      [ True, False]])

Definitions¶

This module also contains a number of definitions that either produce or manipulate masks in some way

Summary¶
`Empty`	Return an empty mask with the given dimensions
`Full`	Return a full mask with the given dimensions
`Map`	Construct a mask from smaller, simpler masks
`Repeat`	Construct a mask by replicating an existing one.
`Pixelize`	Enlarge an existing mask, creating a pixelised effect.

Empty¶

class arlunio.mask.Empty(*args, **kwds)[source]¶

Inputs:	`width: int` `height: int`
Produces:	`Mask`

An empty mask.

Example

>>> from arlunio.mask import Empty
>>> empty = Empty()
>>> empty(width=4, height=3)
Mask([[False, False, False, False],
      [False, False, False, False],
      [False, False, False, False]])

Full¶

class arlunio.mask.Full(*args, **kwds)[source]¶

Inputs:	`width: int` `height: int`
Produces:	`Mask`

A full mask.

Example

>>> from arlunio.mask import Full
>>> full = Full()
>>> full(width=4, height=3)
Mask([[ True,  True,  True,  True],
      [ True,  True,  True,  True],
      [ True,  True,  True,  True]])

Map¶

class arlunio.mask.Map(*args, **kwds)[source]¶

Inputs:	`width: int` `height: int`
Produces:	`Mask`

Build a mask composed out of smaller, simpler masks.

When evaluated this will produce a mask with the given width and height and divide it into a grid. The dimensions of this grid are determined by shape of the layout array.

The layout attribute should be set to a 2D array the elements of which can be anything. While the legend attribute is set to a dictionary whose keys correspond to values in the layout array. These keys should then map to mask producing definitions. It’s important to note that these definitions can only take width and height as inputs.

The cells in the grid will then be set to the mask produced by the definition corresponding to the value in the layout. If however the legend does not contain a matching key then the fill definition will be used instead.

Note

Due to a limitation in the current implementation, you will get best results if the dimensions of the layout grid divide cleanly into the dimensions of the final mask.

fill¶: The definition to use in any cell where a corresponding definition cannot be found in the legend. If None this will default to arlunio.mask.Empty

layout¶: A 2D numpy array of values representing keys from the legend detailing which mask should be used in which cell.

legend¶: A dictionary with keys corresponding to values in the layout that map to mask producing definitions that should be used.

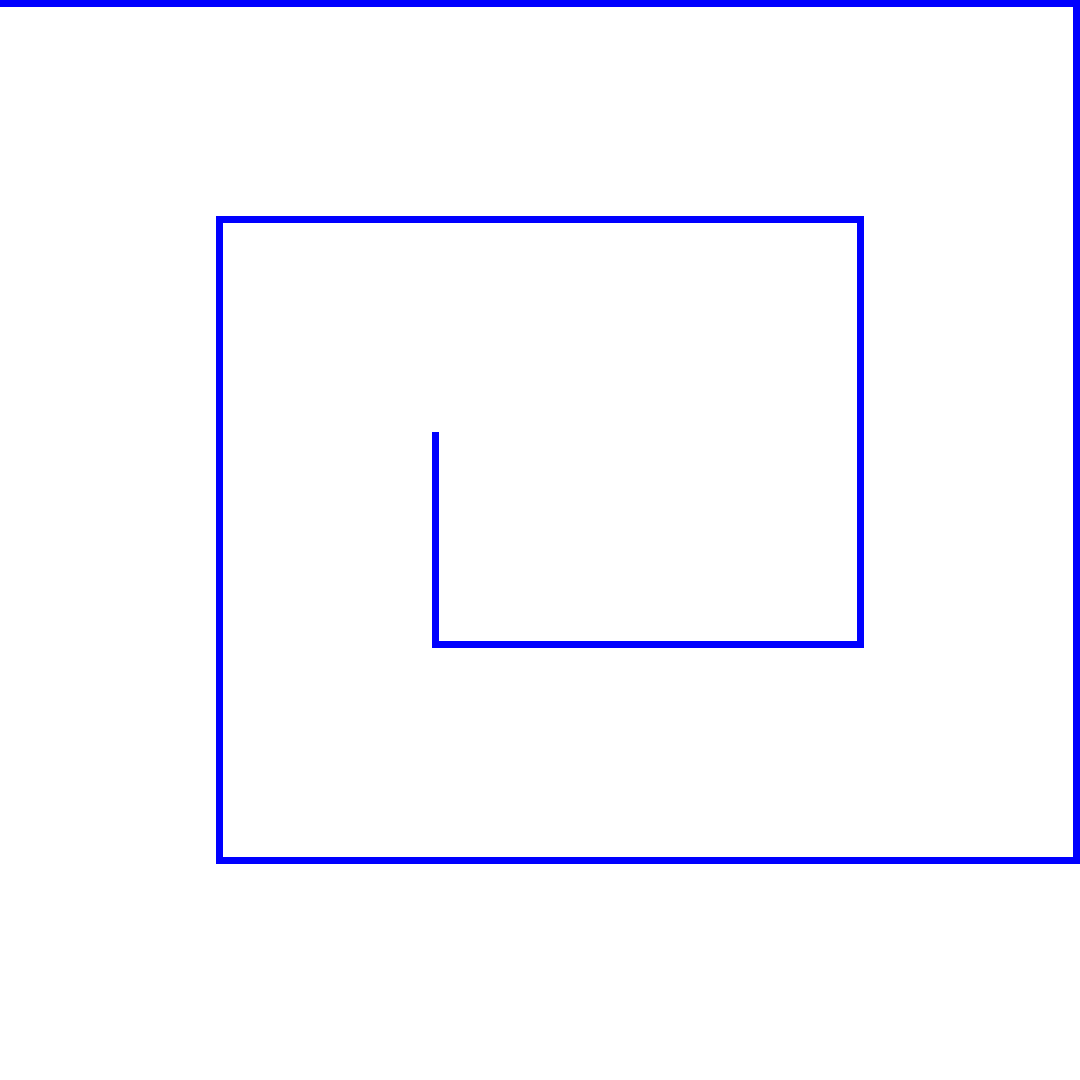

Example

import arlunio.image as image
import arlunio.mask as mask
import arlunio.shape as shape

import numpy as np

top = shape.Rectangle(size=0.2, yc=1, ratio=50)
left = shape.Rectangle(size=0.2, xc=-1, ratio=1/50)
right = shape.Rectangle(size=0.2, xc=1, ratio=1/50)
bottom = shape.Rectangle(size=0.2, yc=-1, ratio=50)

legend = {
    "tt": top,
    "bb": bottom,
    "ll": left,
    "rr": right,
    "tl": top + left,
    "tr": top + right,
    "bl": bottom + left,
    "br": bottom + right
}

layout = np.array([
    ["tt", "tt", "tt", "tt", "tr"],
    [  "", "tl", "tt", "tr", "rr"],
    [  "", "ll", "bl", "br", "rr"],
    [  "", "bl", "bb", "bb", "br"],
    [  "",   "",   "",   "",   ""]
])

map_ = mask.Map(legend=legend, layout=layout)
img = image.fill(
    map_(width=1080, height=1080), foreground="blue", background="white"
)

Repeat¶

class arlunio.mask.Repeat(*args, **kwds)[source]¶

Inputs:	`width: int` `height: int`
Produces:	`Mask`

Given a mask producing definition, replicate the resulting mask in a grid.

When evaluated this will create a mask with the given width and height. It will then subdivide it into an \(n \times m\) grid where each cell contains a copy of the mask as produced by the definition specified with the defn attribute.

It’s important to note that the given definition must only take width and height as inputs.

Note

Due to a limitation in the current implementation, you will get the best results if your \(n \times m\) grid divides cleanly into the resolution of the final mask. Otherwise you will find that the generated grid won’t completly fill it.

n¶: The number of times to repeat the given definition horizontally

m¶: The number of times to repeat the given definition vertically. If None this defaults to the value of n

defn¶: The instance of the definition to replicate.

Examples

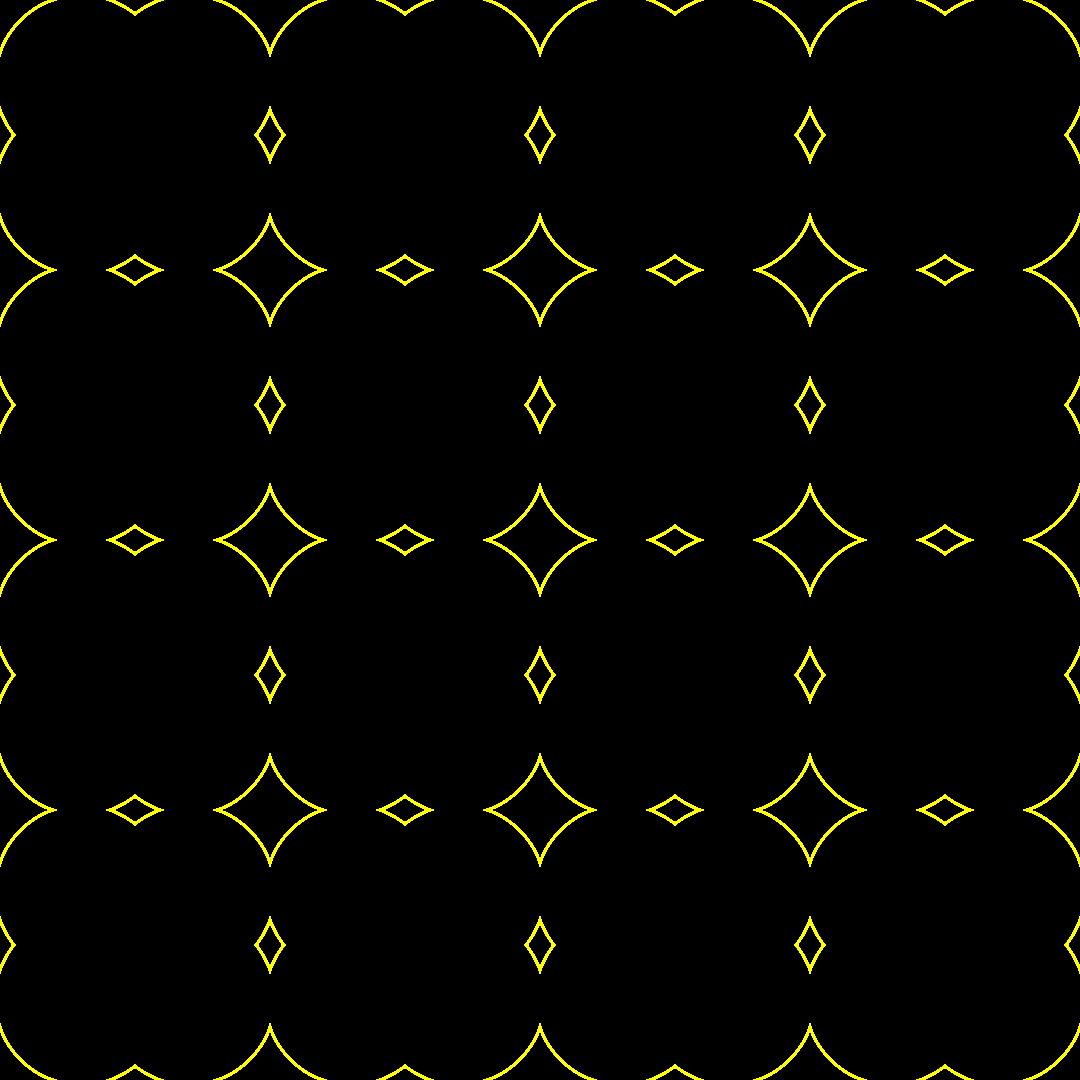

A pattern generated from circles:¶

import arlunio as ar
import numpy as np

import arlunio.image as image
import arlunio.math as math
import arlunio.mask as mask
import arlunio.shape as shape

@ar.definition
def Template(x: math.X, y: math.Y) -> mask.Mask:
    c = shape.Circle(xc=0.4, yc=0.4, pt=0.02)
    return c(x=np.abs(x), y=np.abs(y))

pattern = mask.Repeat(defn=Template(scale=1.))
img = image.fill(
    pattern(width=1080, height=1080), background="#000", foreground="#ff0"
)

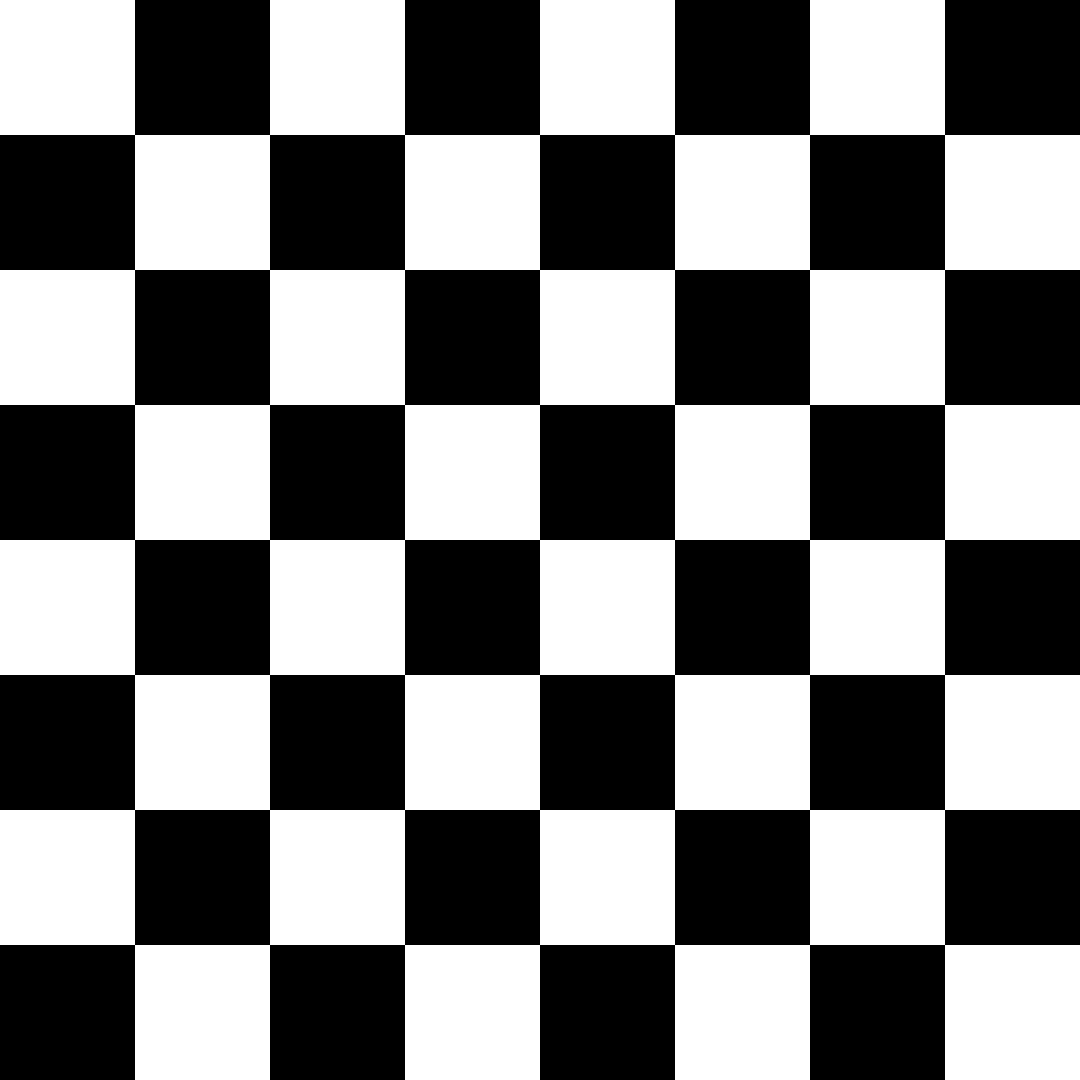

A checkerboard:¶

import arlunio.image as image
import arlunio.mask as mask
import arlunio.pattern as pattern

grid = mask.Repeat(defn=pattern.Checker())
img = image.fill(grid(width=1080, height=1080), background="white")

Pixelize¶

class arlunio.mask.Pixelize(*args, **kwds)[source]¶

Inputs:	`width: int` `height: int`
Produces:	`Mask`

Produce a pixelated version of the given mask.

This definition can either be given an existing mask or a mask producing definition which can be given with the defn attribute. Note that this definition can only take width and height as inputs.

Note

There is a limitation in the current implementation where the resulting mask may be smaller than expected due to rounding errors. For best results

Ensure that the shape of the mask given with the mask attribute cleanly divides your desired width and height.
When using the defn attribute ensure that the scale attribute cleanly divides your desired width and height.

mask¶: The mask to pixelise. If given then defn must be None.

defn¶: The mask producing definition to use. If given then mask must be None

scale¶: When providing the defn attribute this controls the resolution the definition is rendered at. Has no effect when providing a mask

Examples

This definition can be used to render a mask at a higher resolution

import numpy as np

import arlunio.image as image
import arlunio.mask as mask

face = np.array([
    [False, False, False, False, False, False, False, False],
    [False, False, False, False, False, False, False, False],
    [False,  True,  True, False, False,  True,  True, False],
    [False,  True,  True, False, False,  True,  True, False],
    [False, False, False,  True,  True, False, False, False],
    [False, False,  True,  True,  True,  True, False, False],
    [False, False,  True,  True,  True,  True, False, False],
    [False, False,  True, False, False,  True, False, False],
])

defn = mask.Pixelize(mask=face)
img = image.fill(defn(width=512, height=512), background="white")

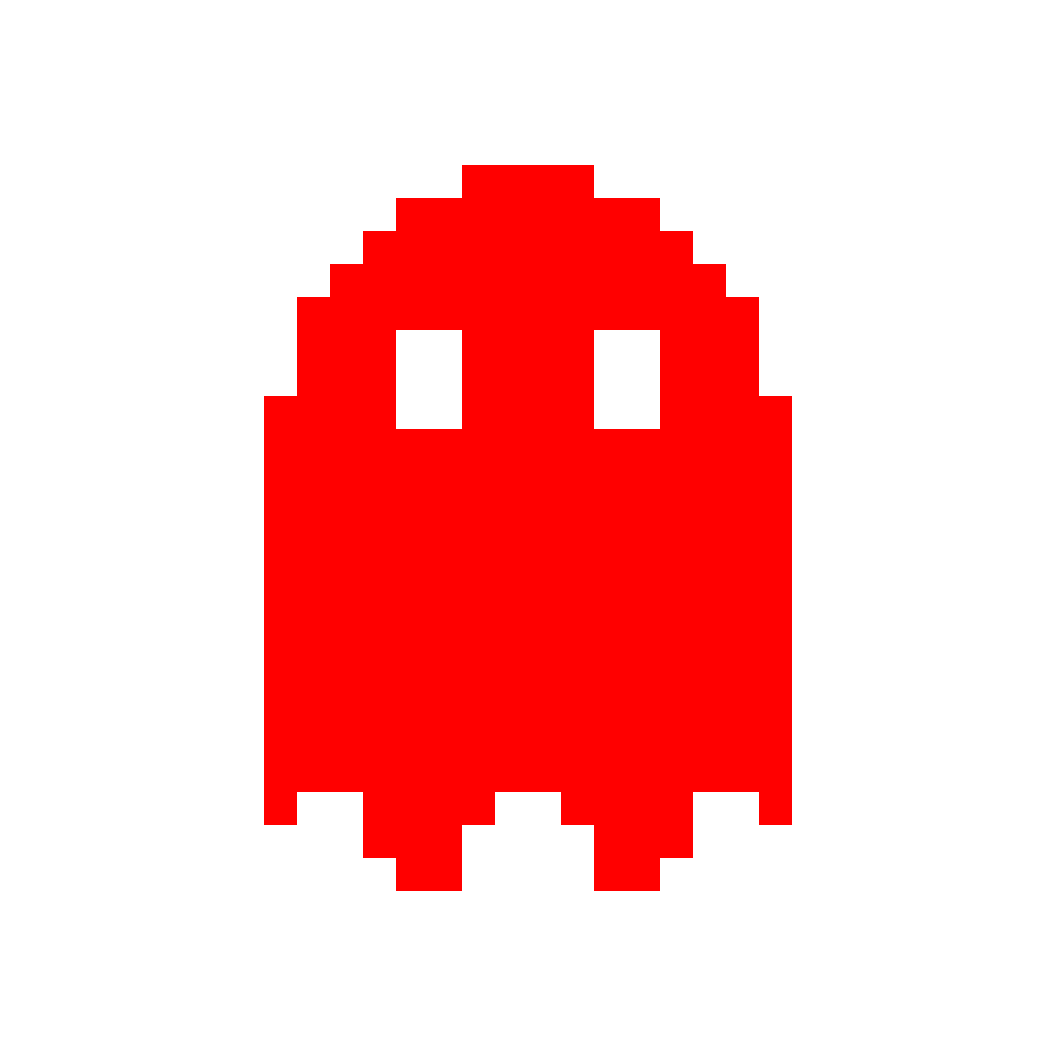

We can also generate the mask directly from another definition.

import arlunio as ar
import arlunio.image as image
import arlunio.mask as mask
import arlunio.math as math
import arlunio.shape as shape

import numpy as np

@ar.definition
def Ghost(x: math.X, y: math.Y) -> mask.Mask:
    head = shape.Circle(yc=0.5, r=0.7)
    eyes = shape.Circle(xc=0.2, yc=0.6, r=0.3)

    body = mask.all_(
        y < 0.5,
        np.abs(x) < 0.49,
        0.1 * np.cos(5 * np.pi * x) - 0.3 < y
    )

    return (head(x=x, y=y) - eyes(x=np.abs(x), y=y)) + body

ghost = mask.Pixelize(defn=Ghost(y0=-0.3), scale=32)
img = image.fill(
    ghost(width=1080, height=1080), foreground="#f00", background="white"
)
