Your First Image

../../_images/sunny-day.png

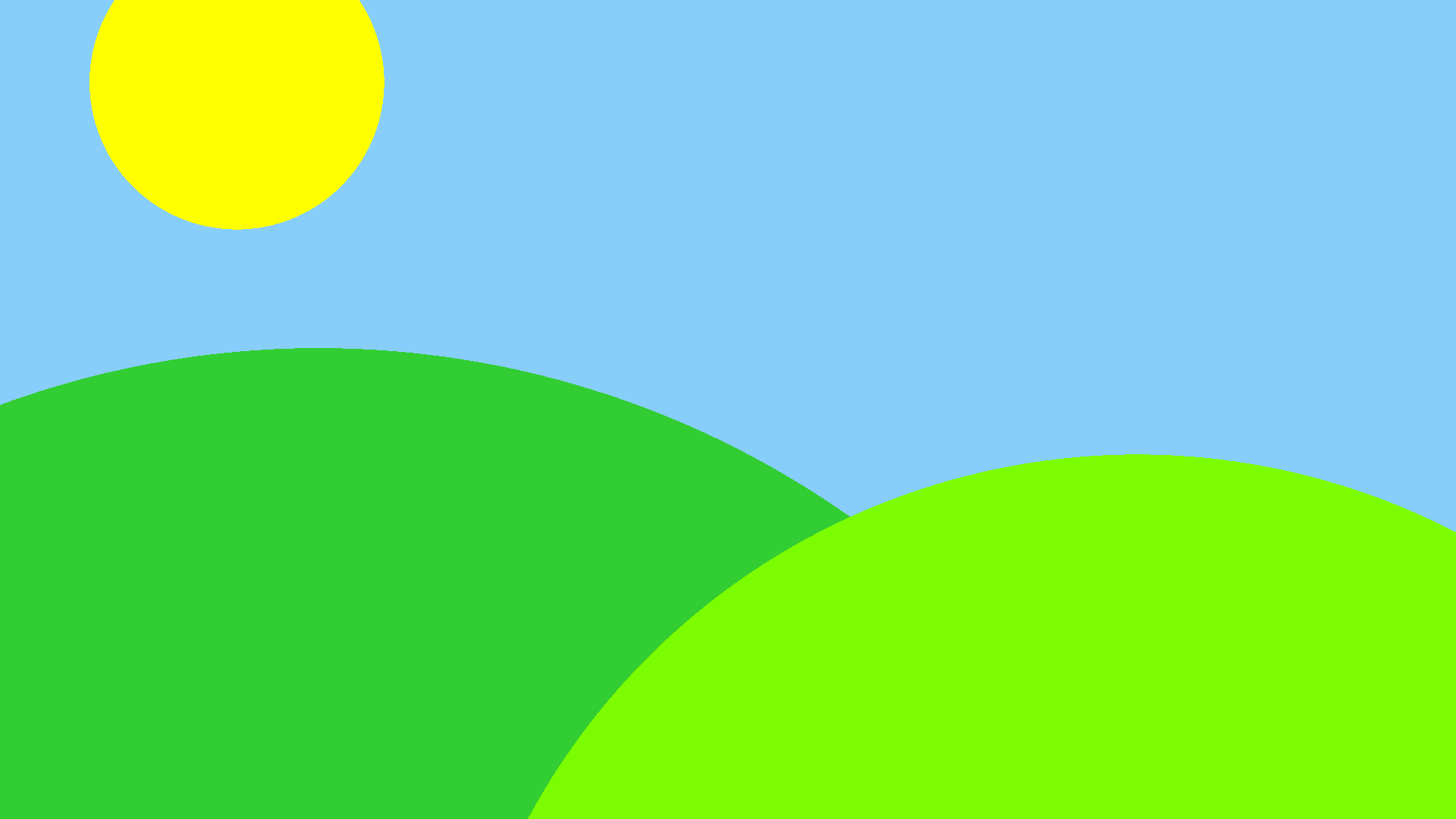

A nice sunny day:

Try it online for yourself →

In this tutorial we will be drawing the image you see above. Along the way you’ll learn some of ways you can create simple images and combine them into a final composition. Given the visual nature of this library it’s recommended that you follow along using a Jupyter Notebook so that you can see the results of each step incrementally.

We start off by importing the modules we need.

import arlunio.image as image
import arlunio.shape as shape

Next we decide on a resolution at which we want to render our final image at and create an image containing the background color representing the sky.

width, height = 1920, 1080
background = image.new(width, height, color="lightskyblue")
background

Now we’ll create a circle to represent the sun and position it over and up to the left. To produce an image we can use the fill function to color in the circle with a yellow color.

sun_shape = shape.Circle(xc=-1.2, yc=0.8, r=0.6)
sun = image.fill(sun_shape(width=width, height=height), foreground="yellow")
sun

Adding our background and sun images together we can start building up our final image - order matters!

final_image = background + sun
final_image

Then following a similar process we can create the two hills and add them onto the final image.

hill = shape.Circle(xc=-1, yc=-2.1, r=1.5)
final_image += image.fill(hill(width=width, height=height), foreground="limegreen")

hill = shape.Circle(xc=1, yc=-1.8, r=1.3)
final_image += image.fill(hill(width=width, height=height), foreground="lawngreen")

final_image

Congratulations! You’ve just drawn your first image with arlunio! Don’t forget to save it as a PNG so you can share it with all your friends 😃

final_image.save("sunny-day.png")

Test Your Skills

As with anything practice makes perfect so we’ve included a few exercises for you to try, can you use what you have learned so far to recreate the examples below?

We have included a solution for each example if you get stuck but keep in mind that there is no “correct answer”. Quite often there are multiple ways to achieve the same result!

../../_images/sunset.png

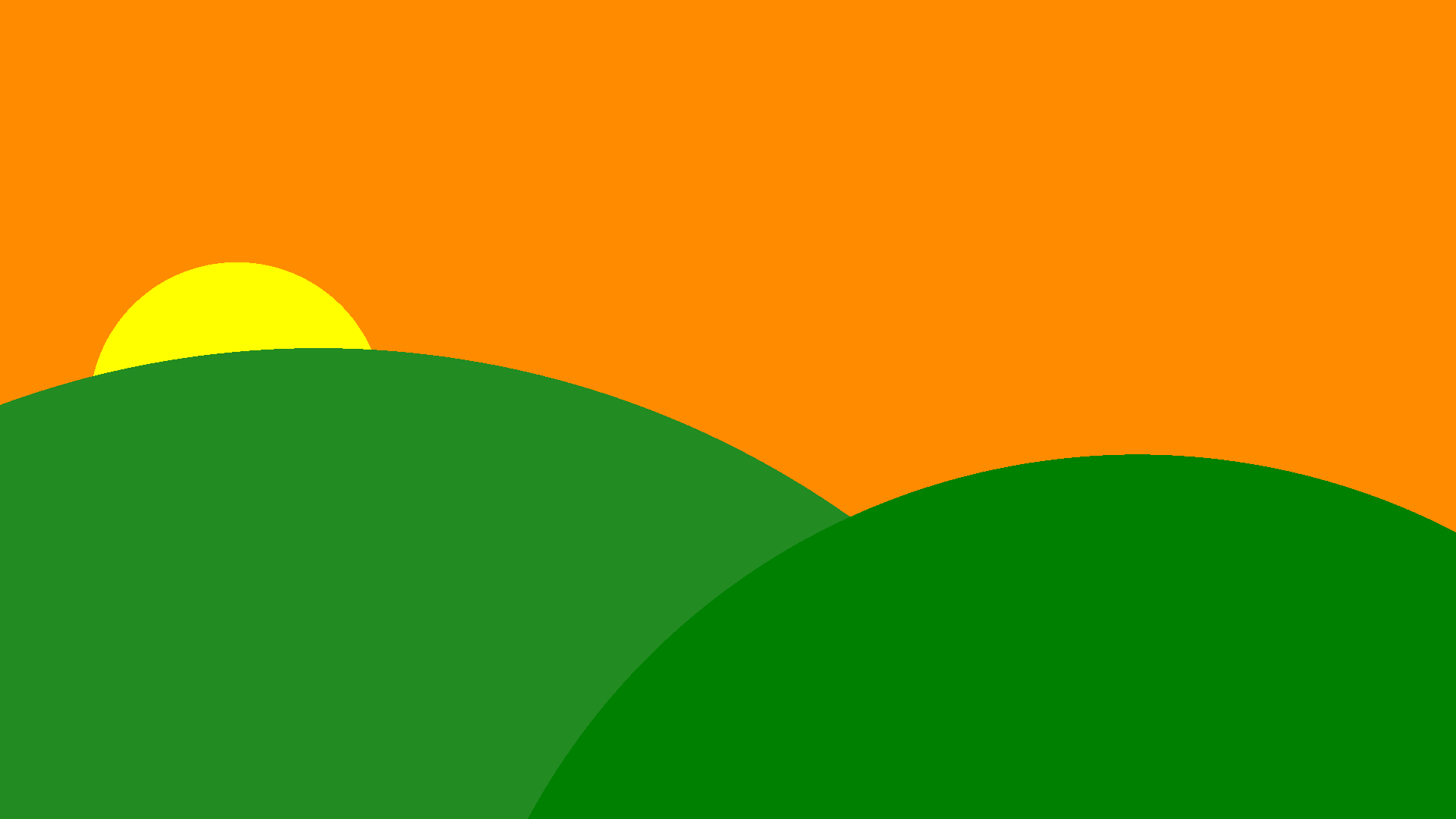

Sunset:

Solution (click to expand)
import arlunio.image as image
import arlunio.shape as shape

w, h = 1920, 1080
img = image.new(w, h, color="darkorange")

sun = shape.Circle(xc=-1.2, yc=0, r=0.6)
img += image.fill(sun(width=w, height=h), foreground="yellow")

hill = shape.Circle(xc=-1, yc=-2.1, r=1.5)
img += image.fill(hill(width=w, height=h), foreground="forestgreen")

hill = shape.Circle(xc=1, yc=-1.8, r=1.3)
img += image.fill(hill(width=w, height=h), foreground="green")
